American Standard Acute Angle Punches | Hardened 42CrMo Upper Dies

Product Overview & North American Clamping Identification

Eliminate angular deviations caused by heavy material deflection and elastic recovery. The ALAS American Standard Acute Angle Press Brake Top Punch (also known as the American-style sharp blade) is a premium core tooling line engineered specifically for North American style mechanical and hydraulic clamping rails. Manufactured from high-purity, vacuum-treated 42CrMo alloy steel, these through-hardened upper dies provide the acute clearance needed to over-bend high-elastic metals, delivering consistent tolerances across high-volume shift schedules.

Perfectly matched with traditional American-standard slider strokes, die holder profiles, and ram tonnage parameters, our 42CrMo hardened sharp punches solve chronic shop-floor fabrication bottlenecks like stainless steel springback and flange marring. They act as the definitive forming interface for demanding aerospace, automotive enclosure, and structural metal panel applications.

Core Structure & Controlled Cold-Bending Sequence

ALAS American-style acute upper dies are seated directly into standard vertical ram rails, cooperating with matching acute or multi-V lower blocks to complete precision air bending. The synchronized mechanical sequence is engineered for stable, long-term continuous industrial throughput:

1. Sheet Alignment: The dynamic workpiece (such as high-tensile stainless steel or galvanized structural plate) is positioned flat across the lower die shoulders.

2. Vertical Downward Stroke: The press brake ram drives the solid 42CrMo acute punch down along the center vertical axis, applying uniform compression force.

3. Controlled Over-Bending: The sheet metal is cleanly extruded into the acute pocket, forming pre-milled acute profiles (such as 30°, 45°, or 60°) or precisely over-bending to compensate for natural material springback.

4. Ram Reset & Unload: Upon achieving preset stroke depths and tonnage tonnage margins, the upper ram resets vertically, ensuring zero friction scraping on the finished flanges.

Micron-Level Tolerances: By adopting advanced CNC surface grinding, the structural alignment axis is maintained tightly, drastically maximizing the yield rate of complex progressive bending jobs.

Key Product Features & Metallurgical Advantages

Unlike lower-cost carbon steel alternative tools that can sag or deform under heavy pressure, ALAS American standard acute punches deliver superior mechanical safety factors:

3.1 Verified Volumetric Hardness & Anti-Chipping Matrix

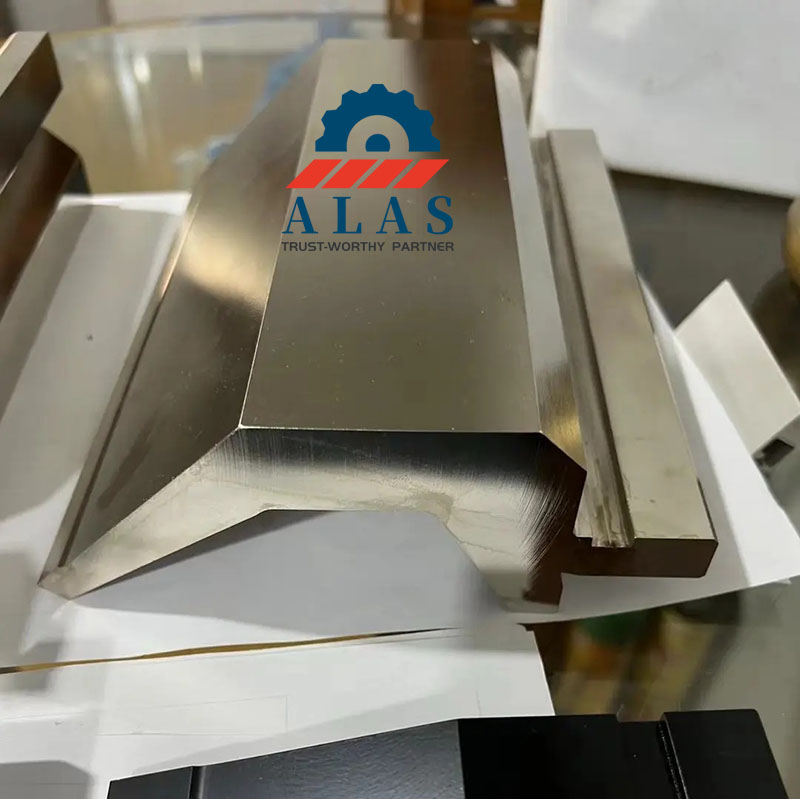

Forged from select chromium-molybdenum structural steel, each upper tool undergoes strict body quenching and high-temperature tempering. The full cross-sectional core reaches a stable, verified working hardness of HRC 47±3 (HRC 45–50 range). This uniform through-hardened matrix completely eliminates the risk of progressive tip collapse, edge deformation, or sudden structural splitting during high-pressure cycles.

3.2 Native North American Rail Compatibility

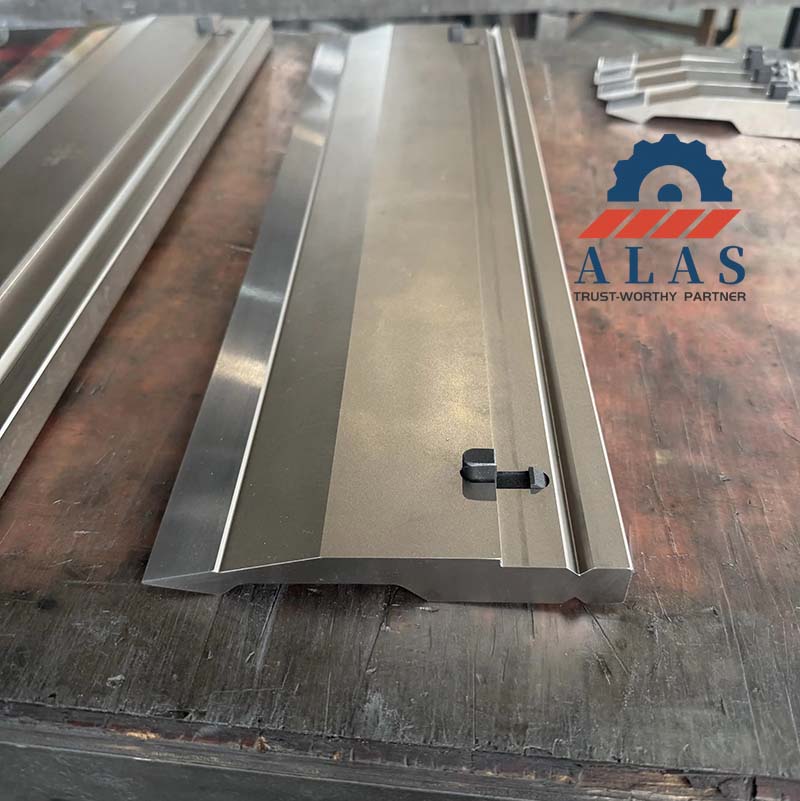

All physical dimensions, mounting tang base widths, and safety locking pin holes fully comply with American press brake rail industry specifications. The tooling functions as a direct drop-in replacement for mainstream American-configured machinery, seating flush without custom shims, universal adapters, or manual ram modifications.

3.3 Advanced Springback Compensation Mechanics

To address the heavy elastic recovery of stubborn alloys, our optimized acute profile design uses precise pre-milled tip angles (typically 85° to 86°) to over-bend the sheets. This allows the material to spring back exactly to a flawless, true 90° final part profile with zero operator trial-and-error.

42CrMo Steel International Standard Grade Comparison Reference

Authentic 42CrMo (AISI 4140) is the global preferred metallurgy standard for high-end CNC bending tools. Refer to our cross-border equivalent index below to verify technical grade tracing and replaceability:

Why Premium Forged 42CrMo Outperforms Low-Cost Carbon Steel

Tool longevity and deflection resistance depend heavily on raw material metallurgy. Compared with low-cost carbon steel press brake dies that suffer from progressive edge deformation, theALAS American Style Hardened Top Punch utilizes strictly controlled high-alloy metallurgy to extend tooling service life under heavy daily operation.

5.1 Structural Advantages of Forged 42CrMo Alloy Steel

• Advanced Alloy Reinforcement: Hot-forged with precise concentrations of Chromium (Cr), Molybdenum (Mo), and Manganese (Mn) to maximize structural density and high-temperature mechanical stability.

• Superior Core Toughness: Combines uniform volumetric hardness with elite tensile strength, ensuring the tool will not crack, chip, or experience sudden brittle fracture under long-term continuous high pressure.

• Extended Nose Lifetime: Delivers exceptional resistance to sliding friction and compression stress, reducing tool sharpening frequency and maximizing CNC machine uptime.

• Consistent Angular Precision: Experiences zero structural sagging or tip deflection during high-volume batch production, guaranteeing identical parts from the first stroke to the last.

5.2 Critical Defects of Conventional Carbon Steel Tooling

• Soft Core Matrix & Rapid Edge Wear: Low core hardness results in rapid surface flattening, localized edge collapse, and extreme scratching when processing tough alloys.

• Low Structural Safety Factor: Highly prone to sudden catastrophic cracking or permanent bending deformation under eccentric high-tonnage loads.

• Frequent Teardown Downtime: Demands frequent tool replacements and regrinds on the shop floor, driving up maintenance labor and decreasing daily machine throughput.

• Restricted Operational Boundary: Limited strictly to low-frequency, loose-tolerance thin sheet tasks, completely failing the requirements of modern high-standard automated CNC lines.

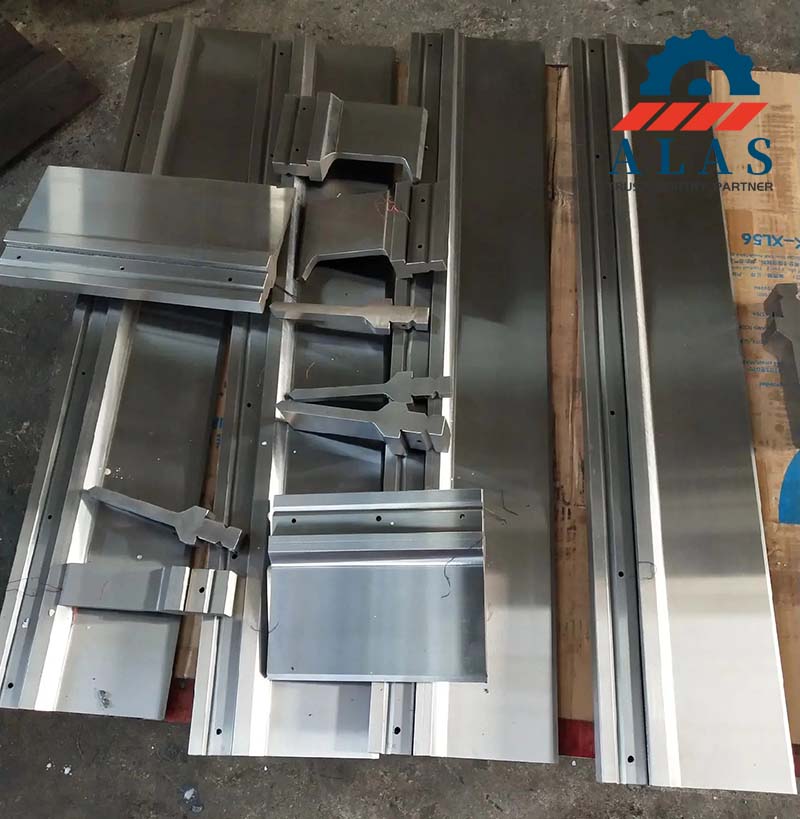

American Style Tooling Profiles & Standard Technical Specs

6.1 Targeted Punch Classifications & Engineering Roles

The ALAS American-style upper die system is strategically anchored by our signature Acute Angle Springback Offset Punches, with comprehensive custom options manufactured to match specific blueprint requirements:

• American Standard Acute Angle Punch (Core Line): Specialized with finely ground sharp noses (30°, 45°, or 60°) designed to over-bend elastic materials, acting as the definitive tool for stainless steel springback compensation.

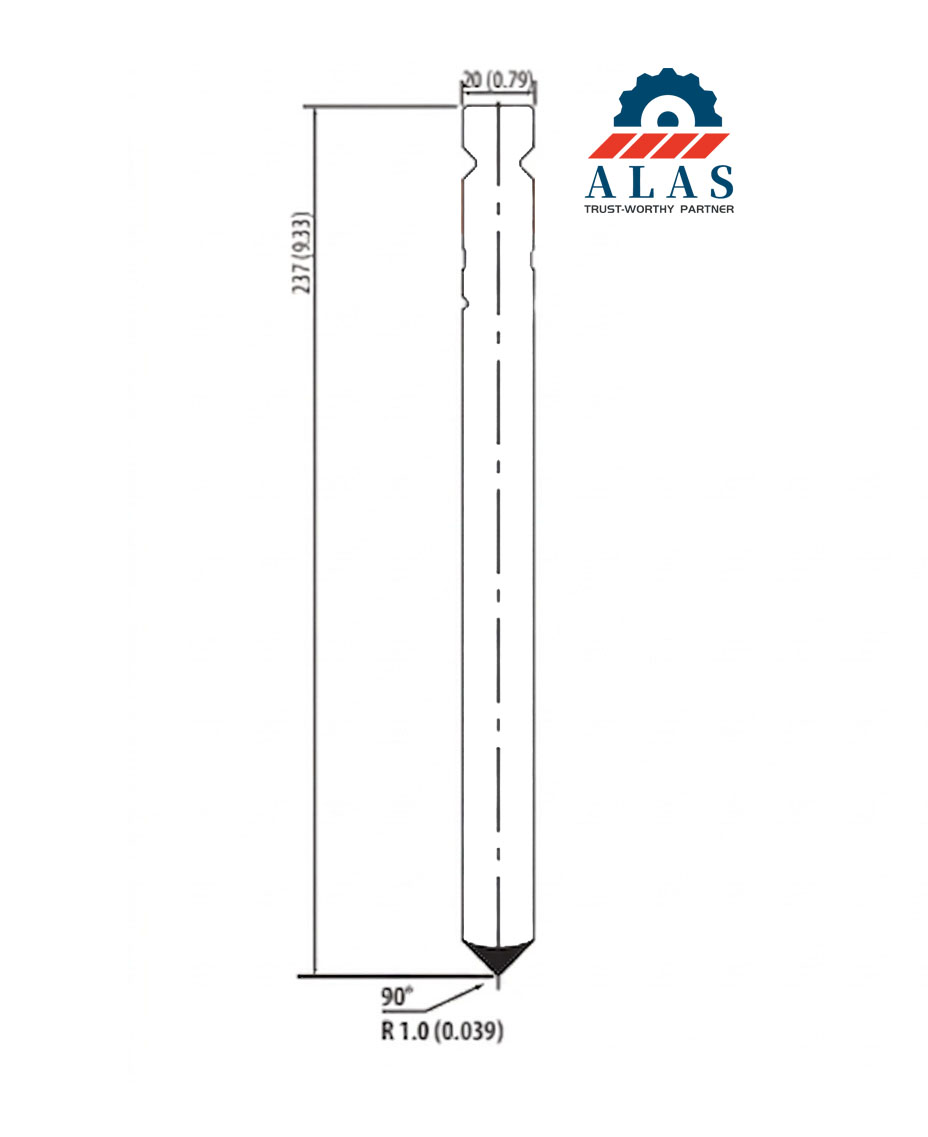

• American Standard Straight Punch (Custom Option): Features an un-recessed solid vertical body layout, engineered to bear heavy-duty continuous forming loads up to 100 Tons/Meter for routine 90° right angles.

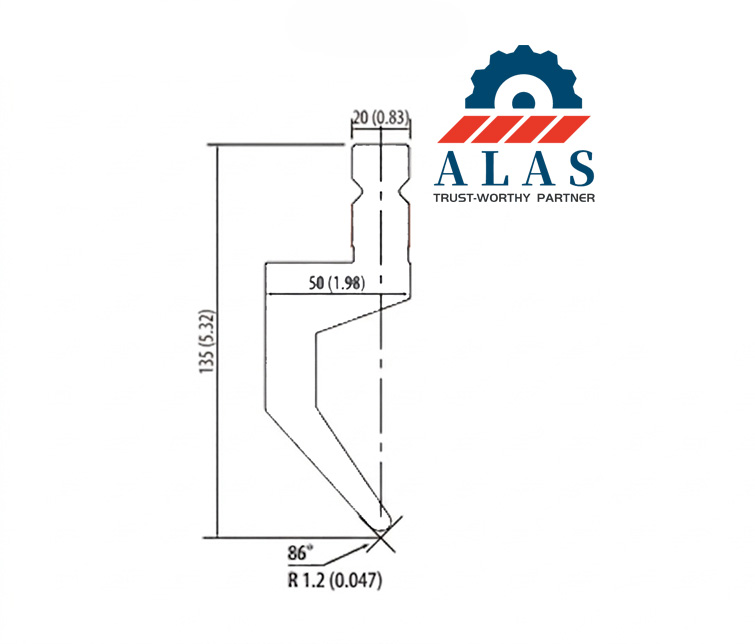

• American Style Gooseneck Punch (Custom Option): Precision milled with a curved deep-offset profile, providing critical trailing clearance to bypass tall pre-formed box flanges.

• Precision Ground Segmented Kits: Pre-split into highly flexible modular fractional block widths (e.g., 10mm, 20mm, 50mm, 100mm, 200mm, 300mm), allowing rapid assembly for closed-contour four-sided trays.

6.2 Targeted Materials & Industrial Production Fields

Optimized for processing a premium spectrum of metals: low-carbon steel, structural galvanized sheets, high-finish architectural stainless steel, and aerospace-grade aluminum alloys. It is widely deployed across critical North American B2B sectors, including electrical enclosure lines, automotive chassis shops, commercial HVAC duct fabrication, and custom server rack manufacturing.

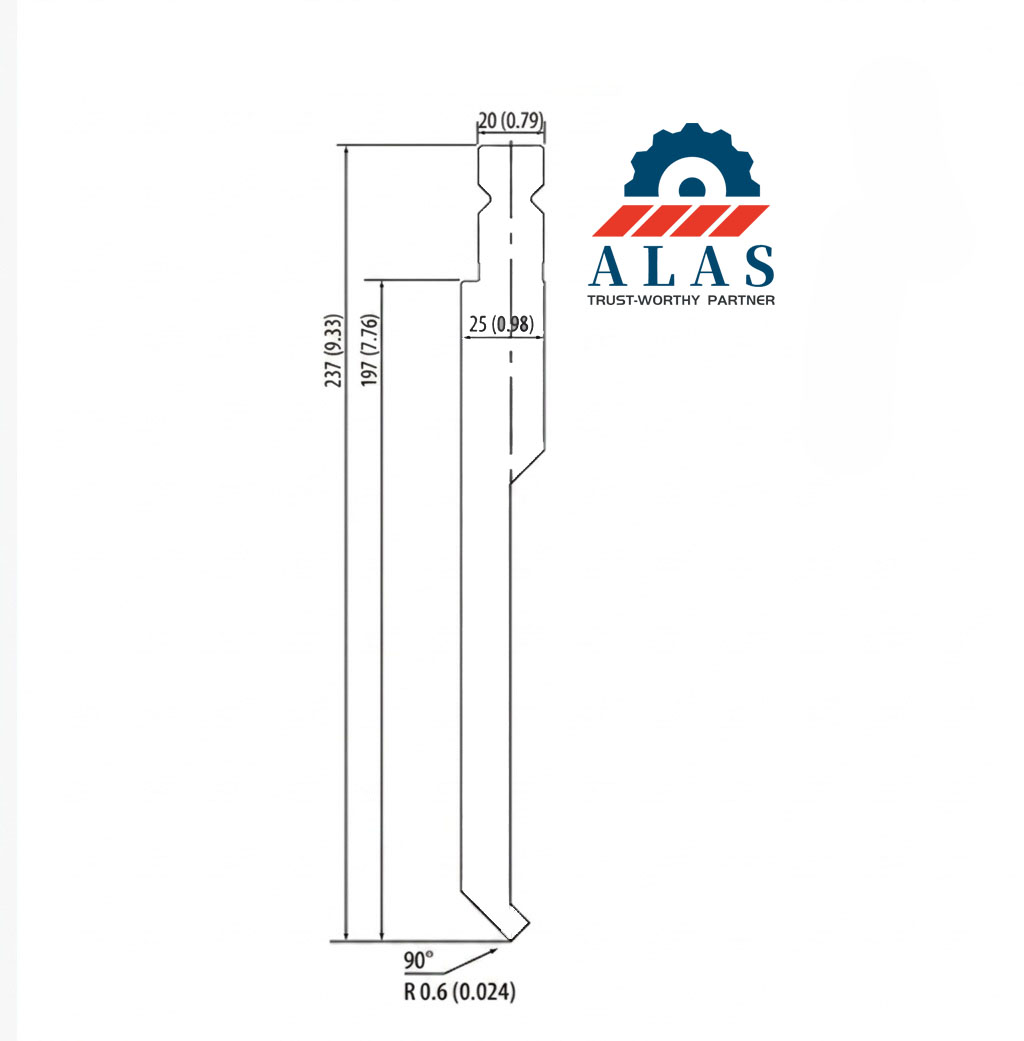

6.3 Standard Dimensional Parameter Chart

The matrix below details the standard, field-proven configurations of our American standard upper die blocks. All dimensions fully comply with US industrial parameters and support bespoke tip radius modifications:

Professional Selection Guidelines: North American Industry Standard Rules

To guarantee maximum bending accuracy, tool safety factor, and structural lifespan on the shop floor, procurement engineers must adhere to the standardized selection rules for American-standard acute upper tooling:

7.1 Material Matching & Elastic Springback Principle

• Mild Steel & Low-Yield Alloys (Slight Springback): Deploy our standard 86° to 88° acute top punches to handle routine 90° right-angle air bending with slight over-travel adjustment.

• Stainless Steel & High-Tensile Structural Plates (Heavy Springback): Deploy our dedicated 30°, 45°, or 85° sharp acute top punches. This provides the strict over-bending clearance required to let the stubborn alloy snap back exactly into a perfect, true 90° profile without localized cracking.

7.2 The 8X V-Groove Standard Formula

Selecting the matching lower V-opening size directly dictates the interior corner radius and controls the localized forming tonnage pressure:

V = 6 × T &nbsp;&nbsp;(For precision thin gauges where T < 3mm to minimize forming fillet marks) V = 8 × T &nbsp;&nbsp;(The core standard rule for conventional sheets where T is between 3mm – 8mm) V = 10 × T ~ 12 × T &nbsp;(For thick plates where T > 8mm to de-rate bending pressure and protect tools)

VT*Where = Lower Die V-Opening Width (mm), and = Active Sheet Metal Thickness (mm).

7.3 Structural Tonnage & Ram Compatibility Audit

Always cross-check the max continuous load bearing capacity of the selected acute punch model against your hydraulic press brake's automated ram force to avoid premature edge collapse or sudden tool cracking. Ensure the physical clamping interface width, total punch height, and machine shut-stroke daylight perfectly match traditional American standard tool rails.

Engineering Best Practices & Operational Precautions

• Prioritize Springback Benchmarks: Always analyze the specific tensile elasticity profile of your batch metal sheets beforehand to select the proper over-bending punch tip angle, preventing out-of-tolerance angle deviations.

• Enforce V-Opening Calibration: Strictly follow the 8X width baseline standard. Forcing thick, stubborn metal sheets into a narrow lower V-groove will cause permanent workpiece fracture and instant punch nose distortion.

• Verify American Standard Rails: Double-check interface dimensional compatibility before loading the ram table to eliminate loose positioning or alignment failures.

• Execute Scrap Test Bending: Always process sample test runs with identical waste sheet metal gauges before initiating automated batch strokes, allowing precise CNC process parameter fine-tuning.

• Implement Volumetric Lubrication: Maintain a disciplined maintenance plan by regularly blowing off magnetic iron scale and wiping down the ground 42CrMo working faces with premium light machine oil to prevent atmospheric corrosion.

ALAS Supply Capacity: Industrial-Grade 42CrMo Precision Tooling

Nanjing ALAS International is a lead-tier B2B machinery tooling manufacturer supplying full-spectrum American Standard Press Brake Top Punches & Hardened 42CrMo Upper Dies across standard and custom specifications. Every tool is manufactured to strict global engineering standards:

• Elite Metallurgy Sourcing: Forged exclusively from genuine high-alloy chromium-molybdenum steel blanks to guarantee stable core toughness.

• Disciplined Hardness Control: Rigorous deep vacuum heat treatment maintaining a verified, uniform body tempering of HRC 47±3 for excellent wear resistance and crack defense.

• Micron CNC Surface Grinding: Critical seating shoulders and punch tips are ground within astrict ±0.02mm tolerance, ensuring immediate parallel alignment and perfectly repeatable bend angles.

• North American Direct Fitment: 100% direct-fit compatibility with all mainstream American-style hydraulic and mechanical clamping setups, backed by international shipping logs and secure export wooden crate packing.

Product Basic Information

• Product name：ALAS American Standard Acute Angle Punches

• Raw material：Forged 42CrMo Alloy Steel (AISI 4140 Equivalent)

• Machining tolerance：±0.02 mm

• Overall hardness：HRC 47±3

• Applicable equipment：Traditional North American Style Clamping Rail press-brake machine

• Main usage：American-style acute-angle punch used for metal sheet springback compensation during bending processing

• Supply form：Factory wholesale, customizable special-shaped punch profiles

Technical Procurement FAQ for American Standard Acute Tooling

Q1: What is the mechanical load rating difference between an American standard 30° acute punch and a 90° straight punch?

A: Due to the narrower cross-sectional mass at the working nose, an acute angle blade features lower overall rigidity than a full-body straight tool. The ALAS American standard 30° acute core punch is safely rated for a continuous maximum load threshold of60 Tons/Meter, whereas our solid straight blocks support up to 100 Tons/Meter. Exceeding this 60 Tons/m boundary limit under tight air bending settings on thick structural steel will trigger localized tip flattening or shoulder micro-cracking.

Q2: How does the ALAS HRC 47±3 through-hardened matrix handle high-yield alloys like stainless steel 304 or 316?

A: High-nickel stainless steel grades exhibit intense severe elastic recovery (springback) and extreme sliding friction. Our 42CrMo high-alloy chemical composition (featuring localized Chromium and Molybdenum reinforcement) provides the mandatory compressive yield strength to endure repeated over-bending compression. The unified body hardness of HRC 47±3 prevents work-hardened stainless edges from scratching, galling, or digging into the punch shoulder radii, securing years of sharp edge tracking.

Q3: Will these acute punches drop natively into standard European-style (Amada/Promecam) hydraulic clamps?

A: No. This specific tooling configuration complies strictly with traditional North American clamping specifications, featuring a deep upper tongue design that locks securely via standard US mechanical drawbars or hydraulic clamp bars. It will not mount flush into a 13mm European quick-change holder or Trumpf/Wila rail channels without the integration of an intermediate upper conversion adapter beam. Always check your machine daylight parameters before ordering.

Q4: Can ALAS customize the punch nose tip radius to prevent localized fracture on sensitive aluminum sheets?

A: Absolutely. While our standard off-the-shelf acute punch features a precision-ground 0.8mm nose radius, we regularly execute bespoke radius milling down to a sharp 0.2mm for line marking, or up to R1.5mm, R3.0mm, and larger profiles. Increasing the tip radius on an acute punch is highly recommended when forming temper-brittle aircraft aluminum to smoothly shift stress concentrations and eliminate surface tearing.

Looking to upgrade your North American style bending precision or request custom deep acute tips? Contact the ALAS engineering team today for an instant B2B wholesale quotation. Submit Your Request for an Instant Quote.
