Dimensional Engineering & Aftermarket Component Matching

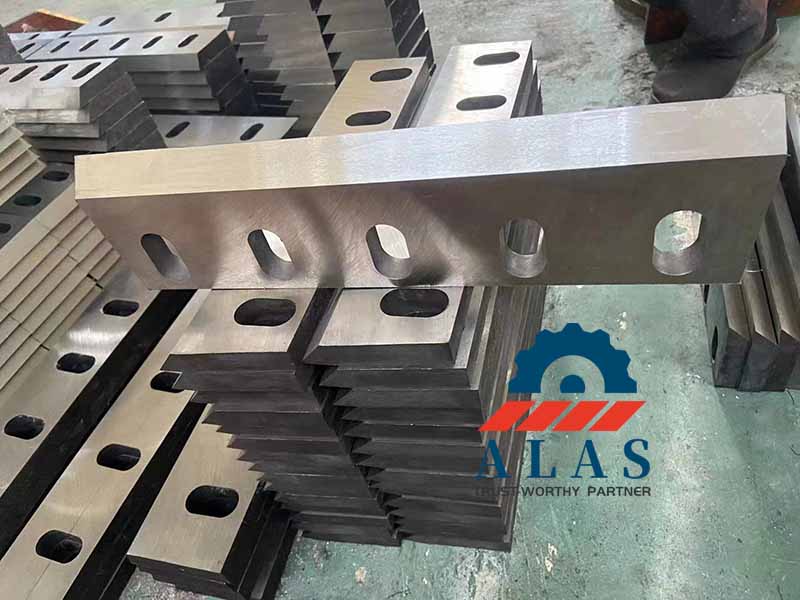

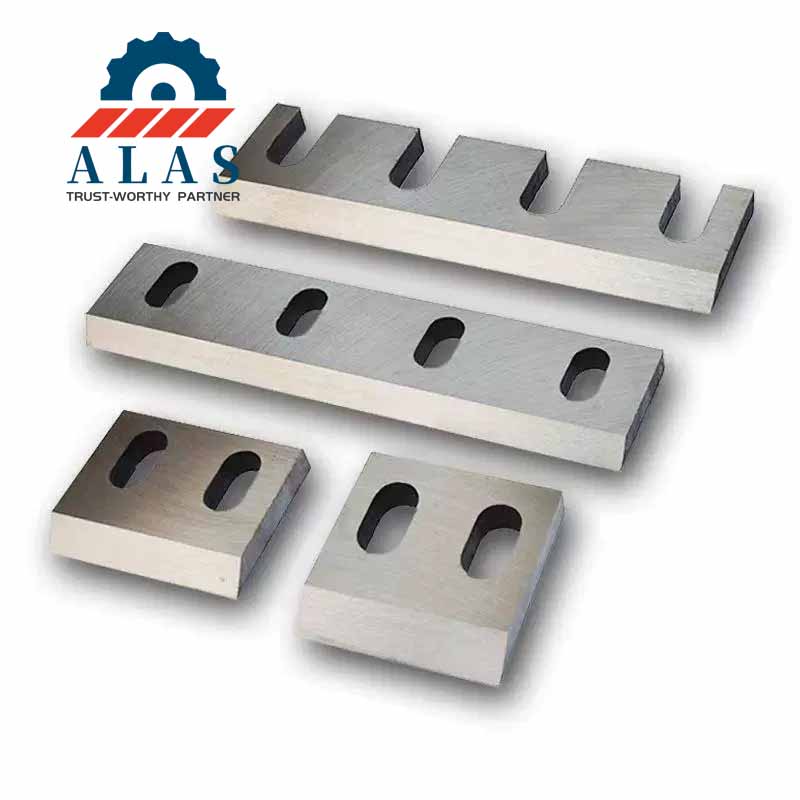

ALAS manufactures high-precision aftermarket granulator knives and replacement crusher blades engineered as direct-fit alternatives for compatible Herbold, Zerma, Rapid, Cumberland, and Hosokawa Alpine cutting chambers. Forged from certified SKD11 (AISI D2) or DC53 alloy tool steel (58–62 HRC), our rectangular flat tools, rotor inserts, and bed counter-knives serve as non-OEM, cost-effective replacements that reverse-engineer original factory dimensions—including counterbore coordinates, shoulder offsets, bolt slot widths, and custom bevel angles.

Our automated CNC grinding processes hold parallelism and straightness deviations strictly within ≤0.03 mm across the effective knife length, allowing drop-in installation onto your original rotor seats without extensive on-site modification. By maintaining an optimized, synchronized cold running clearance—0.10mm to 0.20mm for flexible packaging films and thin webs, or 0.20mm to 0.35mm for rigid engineering polymers—these replacement tools deliver a clean, burr-free shear cut while eliminating high OEM price markups and long logistics delays.

Tool Steel Metallurgy & Controlled Heat Treatment

To help our aftermarket replacements achieve reliable runtimes under continuous operational loads, our manufacturing line applies vacuum heat treatment processes tailored for abrasive and impact wear modes:

Alloy Selection Reference for Aftermarket Components

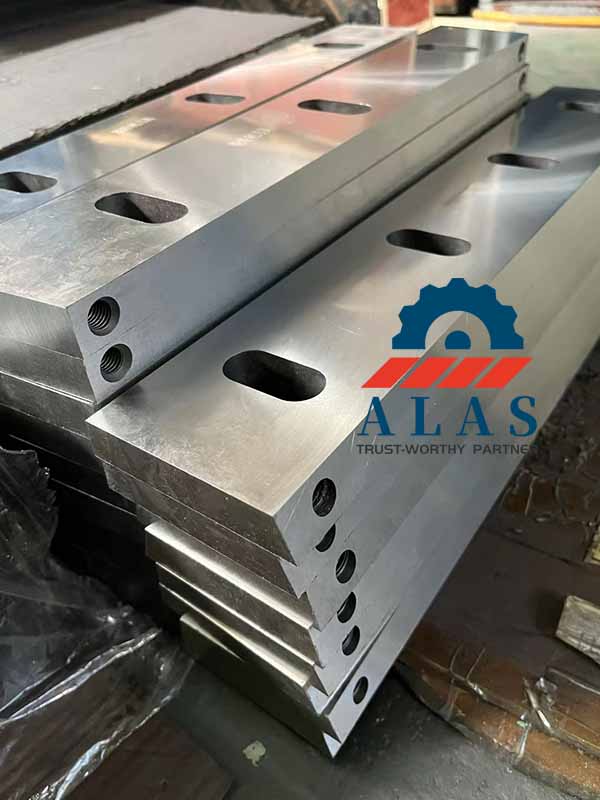

Material Grade: SKD11 / AISI D2

Target Applications: Rigid polymer recycling lines, PET bottle granulators, and standard rigid engineering scrap.

Core Characteristics: Balanced sliding wear resistance; uniform chromium carbide distribution helps sustain edge keenness and reduce excess regrind dust fines.

Material Grade: DC53 Tool Steel

Target Applications: High-load central granulators processing thick-walled HDPE profiles, dense injection purges, and filled polymers.

Core Characteristics: Enhanced impact toughness compared to standard D2 steel; helps suppress edge micro-chipping and crack propagation under high peak rotational torques.

Controlled Heat Treatment: Every dynamic fly blade and stationary bed counter-knife undergoes multi-stage vacuum quenching and a triple tempering protocol. This thermal process stabilizes the crystalline tool matrix, reducing internal residual stresses and locking a uniform 58–62 HRC hardness to ensure the replacement set can be reground uniformly multiple times.

Form Tolerances & Installation Standards

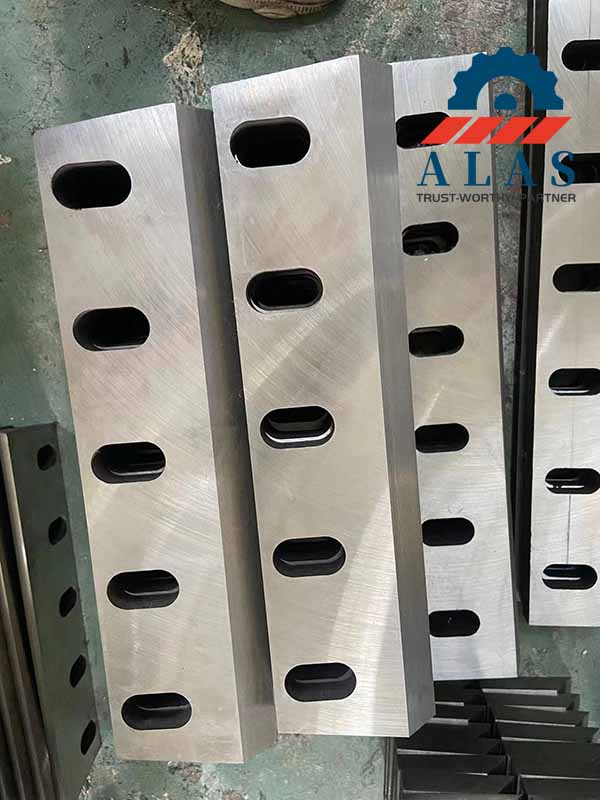

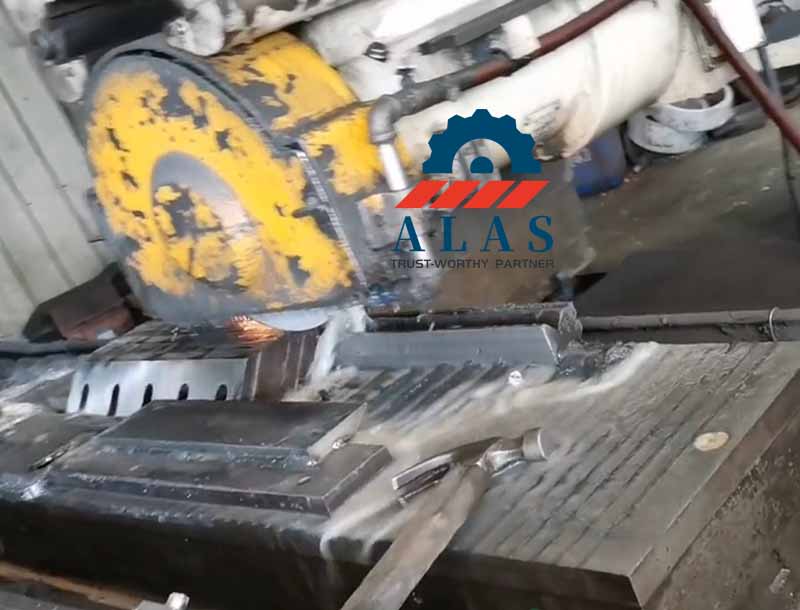

Automated CNC surface grinding controls shape deviations to ensure that bolt-slot center line pitches align with original machinery layouts:

• Parallelism & Straightness Deviation: Maintained within or equal to 0.03mm across the effective length of the knife bed.

• Thickness Uniformity Tolerance: Maintained within plus or minus 0.05mm to reduce dynamic shear stress imbalances during high-speed rotation.

• Initial Cutting Edge Profile: Straight-bevel cutting geometry with an initial precision edge hone radius of less than or equal to 30 microns to ensure micro-edge strength under continuous impact.

Aftermarket Setup & Mechanical Validation FAQ

Q: How does ALAS ensure that an aftermarket blade fits securely without on-site modification?

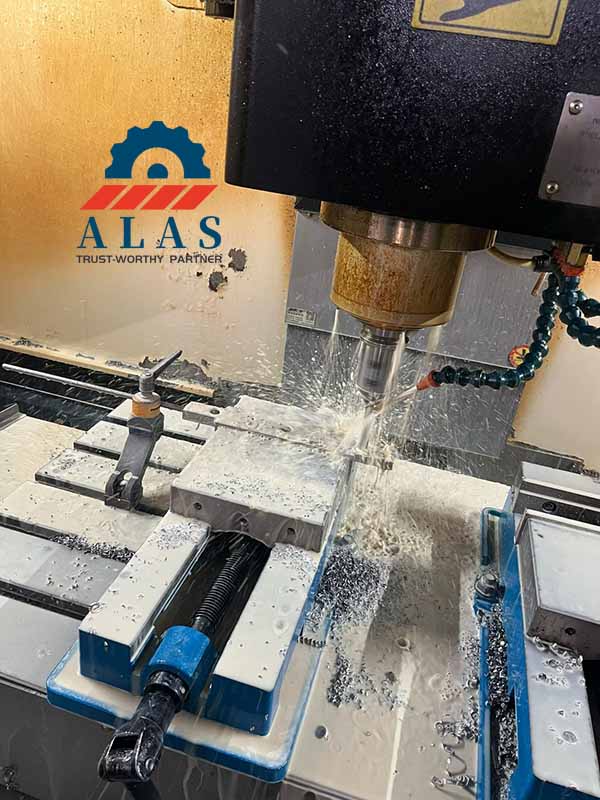

A: Our manufacturing processes rely on coordinate reverse engineering and exact blueprint cloning. Technicians utilize coordinate measuring machines to map original samples, capturing counterbore depths, shoulder offsets, countersunk angles, and bolt hole slot widths. We maintain an engineering reference library for major global brands including Herbold, Rapid, and Zerma, helping ensure that bolt hole alignments match your original machine rotor or stator seats.

Q: What is the recommended cutting clearance gap when installing aftermarket granulator knives?

A: Calibrate the cold running clearance gap based strictly on your feedstock characteristics:

• Thin PE/PP Films & Woven Sacks: Set the gap strictly to 0.10mm–0.20mm.

• Rigid Engineering Plastics & Chunks: Calibrate accordingly to prevent tool collision.

• Thermal Compensation: Account for operational gap narrowing under continuous heavy loads.

Q: What fastener torque specifications must be followed during tool replacement?

A: Operators should utilize Grade 12.9 high-tensile fasteners to secure the blade sets. Tighten bolts progressively in a diagonal star-pattern sequence across two distinct stages: first secure all fasteners to 60% capacity, then torque to 100% to help prevent main shaft deformation or tool holder block skew.

For small-to-medium granulators (Model 300 to 500 using M12 to M16 bolts), a torque range of 80–120 N·m is typically recommended.

For heavy-duty central granulators or machines using fasteners larger than M18, operators must strictly follow the specific torque ratings provided in the machine builder's original technical manual to prevent under-torquing or thread failure.
