Industrial rebar cutter blades determine cross-cutting cycle efficiency and per-cut operational costs. Maximizing consumable asset lifespan requires aligning precise mechanical calibration with specific tool steel profiles. Explore our targeted range of industrial rebar cutter blades to eliminate premature failures.
Component Run‑In and Clearance Calibration
New Blade Conditioning: Run the initial 10 test cycles using light φ 12 mm round bars. Apply molybdenum disulfide grease directly to the edge profiles after each stroke and hone boundaries with a fine oilstone. Never cut high‑tensile Grade 60 (HRB500) bars with an unconditioned edge.
Clearance Gap Baseline: Maintain absolute edge‑to‑edge clearance within a 0.1 mm to 0.5 mm window. For standard mixed materials, adjust the gap dynamically to 1% to 2% of the nominal rebar diameter.
High‑Volume Golden Limit: For continuous automated batch lines, lock the clearance strictly within 0.2 mm to 0.3 mm using physical feeler gauges.
Over‑Clearance Risks (>0.5 mm): Forces material into a tear‑and‑bend mode, causing severe tail burrs, deformed sections, and structural blade seating pocket cracking.
Calibration Frequency: Check gap clearance and re‑torque retainer bolts to 200–300 N·m every 200 metric tons processed or at any block rotation interval.
Symmetrical Edge Rotation and Scrap Criteria

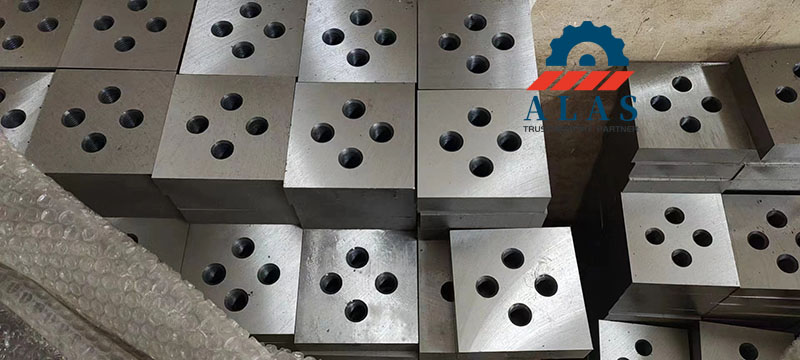

Four‑Sided Indexing Strategy: Rotate square blocks 90 degrees inside the tool seating pocket every 1,000 cuts or at the first sign of edge rounding. Sequentially utilizing all 4 cutting profiles quadruples total tool lifecycle uptime before component disposal. Re‑verify the gap via feeler gauges after every rotation.
Rotation vs. Scrap Thresholds: Superficial edge chipping ≤ 0.5 mm merely mandates an immediate block rotation. Localized spalling or breakthroughs exceeding 2.0 mm permanently destroy that specific edge.
Immediate Retirement Criteria: Scrap the block completely when all 4 faces are consumed, if macroscopic fatigue cracks propagate through the backing core, or if mounting bolt holes suffer thread stripping. Route spent blocks to high‑value alloy recycling streams.
Metallurgical Material Selection Guide
Procurement managers must align specific tool steel grades with workshop processing volume to minimize Total Cost of Ownership (TCO):
9CrSi (Low‑Alloy Steel): High hardness and cost‑effective wear resistance. Deployed for small, intermittent residential construction sites cutting mild round steel. Fails under continuous automated production.
Cr12MoV / D2 (High‑Carbon, High‑Chromium Steel): Maximum abrasion resistance and edge retention. Engineered for central steel distribution hubs executing continuous, 24‑hour mass manufacturing. Hardness is locked at 58–60 HRC.
H13 (Chromium‑Molybdenum Hot‑Work Steel): Outstanding core toughness and shock resistance against catastrophic fractures. Deployed for heavy‑duty infrastructure projects cutting thick structural profiles and high‑tensile Grade 60 bars. Hardness is maintained within 50–55 HRC.
Technical Troubleshooting Matrix
Fault Symptom
Probable Root Cause
Target Engineering Solution
Inclined / Uneven Cuts
Excessive clearance gap or play in machine guide tracks.
Adjust gap via gaskets; tighten main guide track bolts.
Lateral Edge Chipping
Feedstock fed non‑vertically relative to the shearing centerline.
Contact the ALAS engineering team today for a technical lifespan optimization audit or a factory-direct wholesale quote on batch-verified rebar cutter blades!
